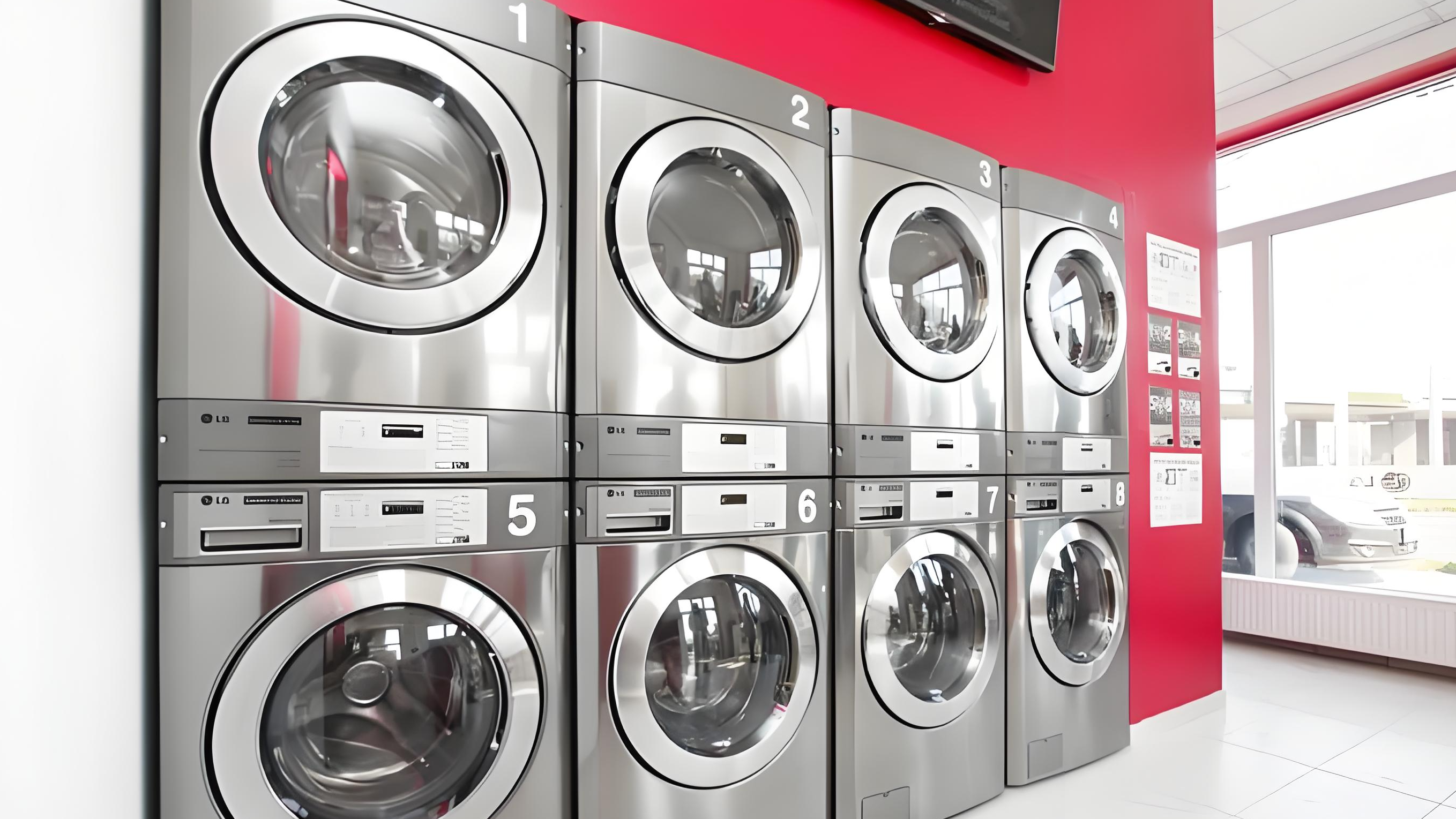

In modern urban life, self-service laundromats offer a convenient laundry solution for busy city dwellers. These laundromats simplify the traditional laundry process through fully automated washing equipment. Users only need to load their clothes into the machine, select the washing program, and add the appropriate detergent. The washing machine then automatically handles the washing, rinsing, and spinning operations. Among these processes, the accurate delivery and dosing of detergent are crucial to ensuring optimal washing results.

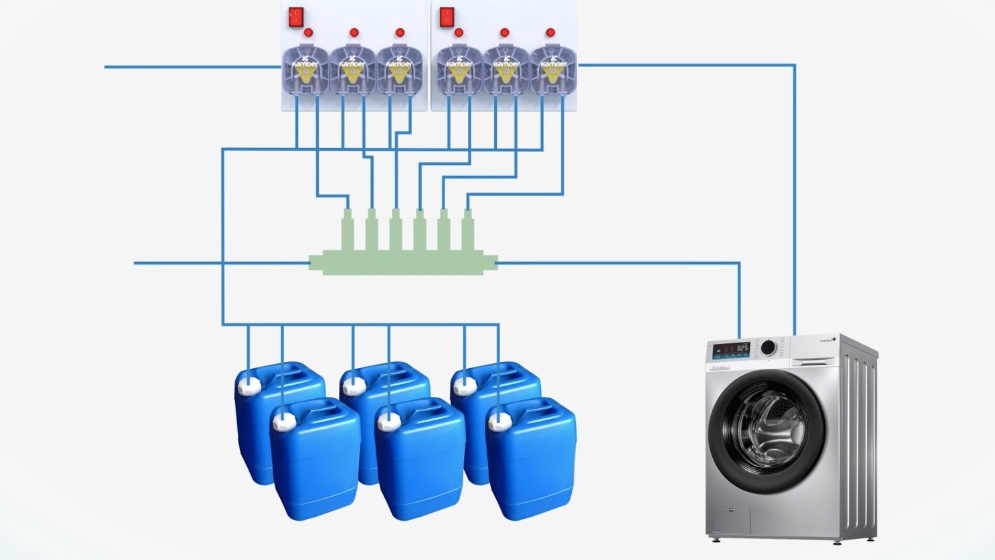

During the washing process in a self-service laundromat, the peristaltic pump is responsible for precisely pumping the predetermined amount of detergent from the storage tank into the washing machine. When the user initiates the washing program, the washing machine's control system activates the peristaltic pump. The pump’s rotor, driven by the motor, rotates, with rollers sequentially compressing the pump tube, moving the detergent from the storage tank to the washing chamber. Since the liquid flows exclusively within the pump tube, the entire process is contamination-free, ensuring the purity of the detergent.

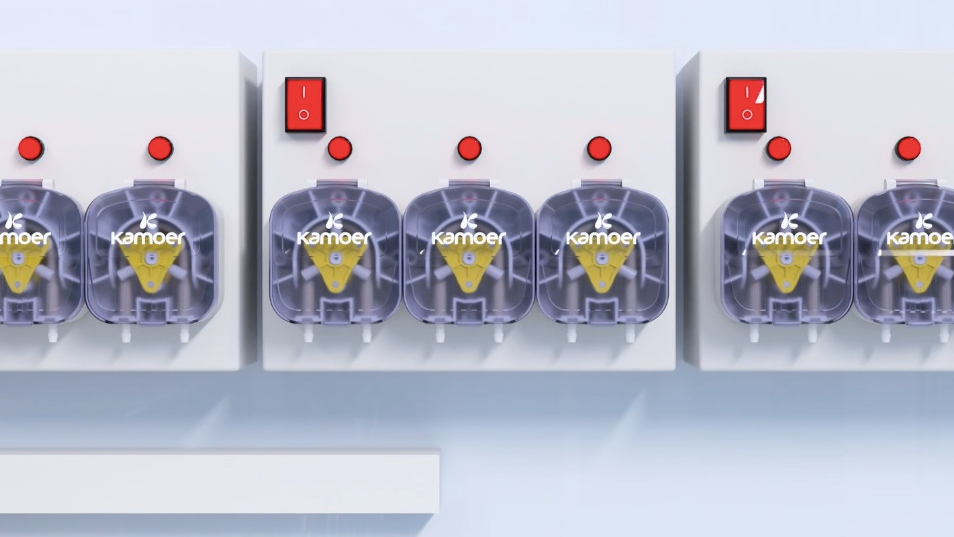

The efficient operation of self-service laundromats relies on key components like the peristaltic pump. The Kamoer KDS peristaltic pump, with its superior performance, ensures the precise and stable delivery of detergent in self-service laundromats, becoming a critical force in advancing the intelligence of these systems.





Advantages of the Kamoer KDS Peristaltic Pump:



01 Efficient and Contamination-Free Delivery

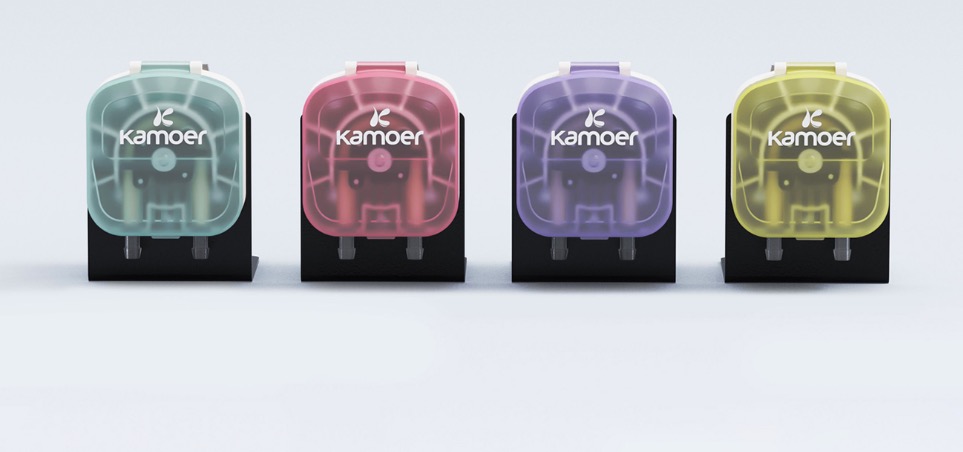

The upgraded KDS peristaltic pump (flow range: 200-420 ml/min) features a three-rotor design that optimizes the smoothness of liquid flow, reduces pulsation effects, and ensures uniform delivery of detergent. The KDS pump ensures a contamination-free process, preventing secondary pollution during liquid transfer.



02 Multiple Pump Tubing Options: Adaptable to Various Liquid Properties
- BPT Tubing: Corrosion-resistant, suitable for detergents with strong acidic or alkaline properties.
- Silicone Tubing: It has low adsorption and high-temperature resistance and is ideal for high-temperature washing scenarios.
- N Tubing: Superior UV resistance, suitable for outdoor use or environments with strong UV exposure.

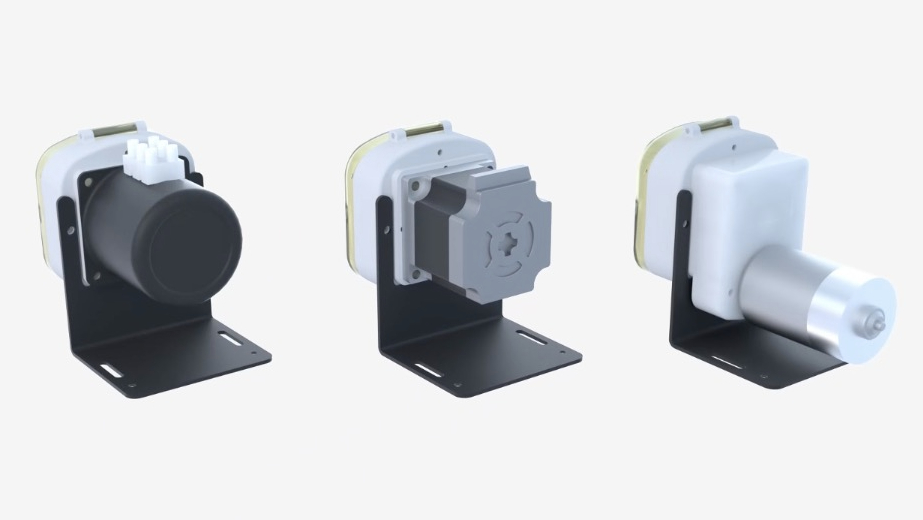

03 Multiple Motor Drives: Flexible to Meet Different Needs
- DC Brushed Motor (24V/12V): Suitable for standard self-service laundry equipment.
- AC Synchronous Reduction Motor: Provides stable power output for high-load washing machines.
- Stepper Motor: Ensures high-precision liquid delivery, suitable for scenarios with strict detergent dosing requirements.



04 High-Quality Materials for Stable Operation
The KDS peristaltic pump's body is made of high-strength engineering plastics, with metal components crafted from corrosion-resistant stainless steel, and the bearings are imported for superior quality. These materials ensure the pump’s long-term stability and reliability, making it well-suited for high-frequency use.





With its advanced technology and superior materials, the Kamoer KDS peristaltic pump meets self-service laundromats' automation and liquid transfer needs. By ensuring the precise and efficient delivery of detergent, the KDS peristaltic pump enhances the operational efficiency of self-service laundromats, significantly improving the user’s laundry experience.



Kamoer has extensive experience in fluid applications within the smart home appliance industry, providing precise and reliable fluid transfer solutions to many customers. We offer competitive, high-quality products for various niche markets and provide comprehensive quality assurance. We look forward to bringing you even better service!
