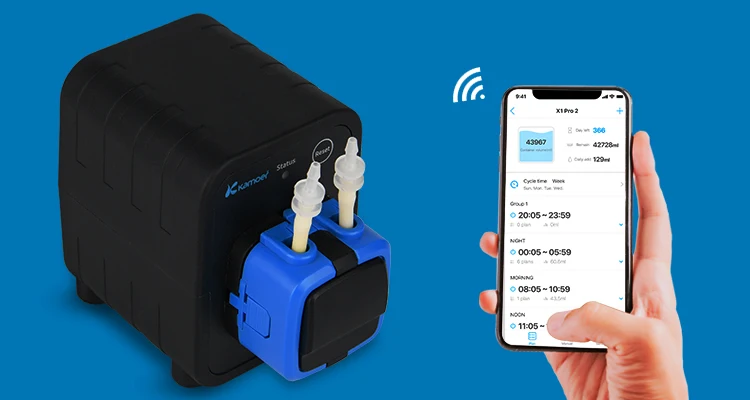

X1 PRO 2 is a single-channel intelligent dosing pump with WIFI remote function, mainly used to add the various elements needed for marine life growth, such as calcium, magnesium, KH booster, trace elements, etc. to marine life cylinder timing, quantitative and accurate. The automation of X1 PRO 2 can greatly reduce the amount of manual added work, but also avoid manual addition caused by leakage, adding excessive or insufficient errors.

Basic Parameters

▲ Power Adapter: Input: 100VAC -240VAC; Output: DC12V 1A ▲ Dosing parameters: Dosing channel: 1 KXF-B06 pump head ▲ Flow: >33ml/min ▲ Number of dosing:24 times/day - 1 time/99 days ▲ Dosing accuracy:<±2% ▲ Volume range:0.1ml-9999ml ▲ Interface: Wi-Fi ▲ Working environment: Temperatures: 0 - 70℃ Humidity: 10% - 90% (non-condensation) ▲ Storage environment: Temperature: -20C - 85℃ Humidity: 10% - 90% (non-condensation) ▲ Dimensions (L*W*H): 60 x 95 x 83 mm (including pump head) ▲ Weight: 214g (does not include power adapter)

Packing List

01 X1 PRO2 WiFI Host ×1 02 Power adapter body ×1(DC12V 1A) 03 Power adapter plug ×1(US/UK/EU/AU) 04 Plastic cylinder ×1(10ml) 05 PVC connection tube(3*5 mm;Transparent 2m) 06 Power extension cable(L-type;75mm) 07 Quick start guide English ×1 08 Hanging screw ×2 (ST2.9*13)

Various Applications

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

More Details

01 Liquid inlet 02 Liquid outlet 03 Power/status indicator 04 KXF pump head 05 Reset button 06 Hanging hole 07 DC12V power input 08 Power output

Installation Method

01 App download

02 Register an account Open the app, use the phone number, and follow the App prompt to complete the account registration.

03 View tutorial On the device list page, click the "?" icon in the upper right corner to enter the "Tutorial" page, and select "X1 PRO 2 " to view the tutorial. The tutorial includes the user manual and frequently asked questions.

Indicator Description



Indicator

State

Description

Status indicator (Blue)




On

Connected to the cloud via router

Off

Disconnected from router

Fast flashing

Network configuration mode, at this time, the app can configure

the X1 PRO 2 to access the router

Slow flashing

Disconnect from the cloud

Power indicator (Red)

On

Powered on

Off

No power on or a power fail

Connect X1 PRO 2 to the Cloud

The dosing pump is powered on for the first time after the box is open, the status indicator (Blue) flashes slowly, at which point will require the use of an app to connect the dosing pump to the cloud via a wireless router. Note: More details you can learn from the guide book.

Precautions

★ Please use the product's own power adapter and work in the specified working environment. ★ This product only supports 2.4G WIFI and does not support 5G WIFI. ★ The dosing pump should be placed in a reasonable position to ensure that the height difference between the inlet and the outlet is within 0.5 m. ★ The connection pipe for liquid inlet should be as short as possible, and the outlet connection pipe should be suspended above the container. ★ Please check carefully that the inlet and outlet connections are in the correct direction.
