Product Description
KMP80 dispensing machine is a professional intelligent dispensing equipment. As a precision equipment, it can accurately set the pump speed and switch between manual and circulation modes to effectively control the dispensing speed and method. The segmented conveying structure of the peristaltic pump can realize a more precise glue control method.

The KMP80 dispenser completes the functions of mode switching, pump start and stop, forward and reverse switching, and general settings through the rotary encoder and display. And the dispenser is equipped with a dispensing pen that can control the dispensing. There are two different trigger methods, which are divided into ordinary trigger and low level trigger.

The ordinary trigger is to press the dispensing pen to switch the pump to start running, and then press the switch again. , The pump stops running; Low level trigger is to press and hold the dispensing pen switch, the pump runs all the time, turn on the dispensing pen switch, the pump stops running.

Specification
Brand Name
Kamoer

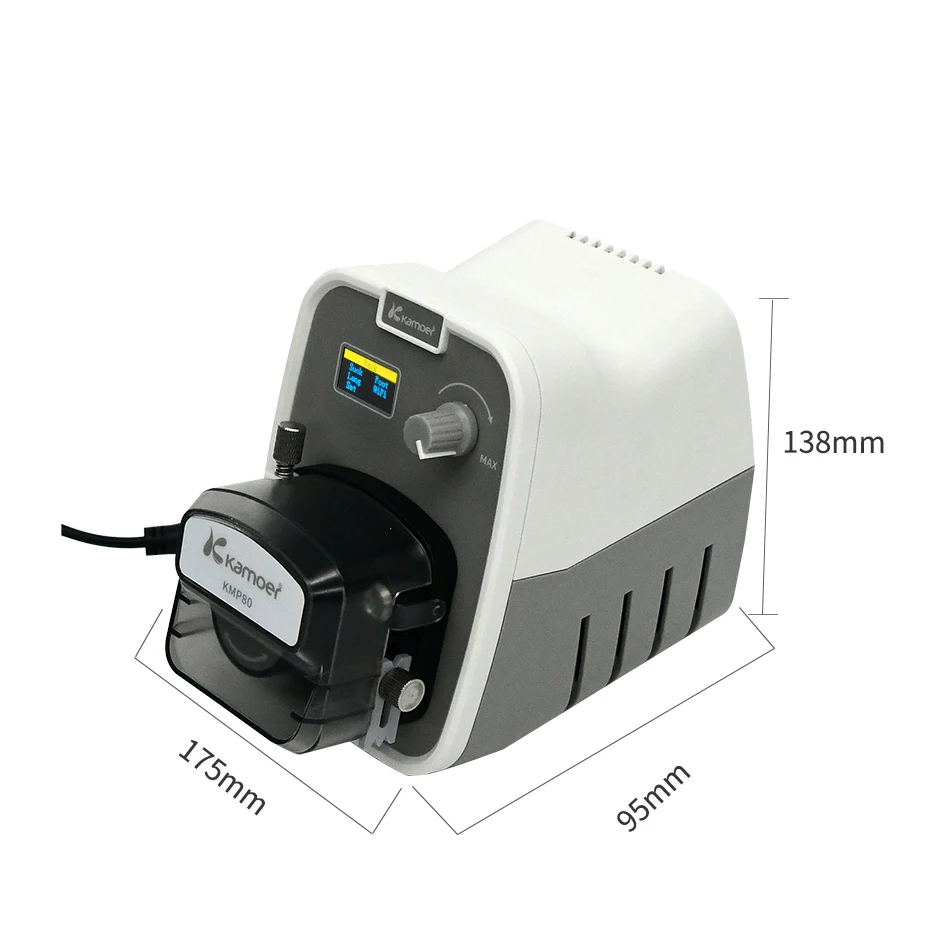

Dimensions
175x95x138mm
Weight
963g(without power adapter)
Power adapter
Input:100VAC -240VAC Output:DC24V 1.9A
Rotation speed
0.1-300RPM
Working angle range
0-99999°
Scope of suck back
0-99999°
Applicable material viscosity
< 1000cps
Interface
WiFi/GX16-4 Aviation joint
Working environment
Temperature 0 - 70 ° C, Humidity 10% - 90% (non-condensing)


Kamoer KMP80 semi-auto glue dispenser

$179.00
In stock
SKU
KMP80
