KLP180 Diaphragm pump

Performance Feature 1. Self-priming, Support Idling 2. Low Power Consumption 3. Available Corrosive Liquid 4. Long Service Life 5. Compact Structure 6. Low Noise 7. Small Size

Basic Parameters

Voltage: 12V/24V Motor:Brush/Brushless Motor Power: ≤6W Flow: ≥160ml/min Liquid pressure: 0.3Mpa Negative Pressure: 0.02Bar Diaphragm Material: EPDM or FPM (Before your ordering, please contact customer service to confirm the diaphragm material, otherwise, we'll choose EPDM automatically.) Noise: ≤ 58dB ​Life time: Brush-500H; Brushless-5000H Working environment: Temperature 0~40℃ Relative humidity: less than 80%

Multiple Applications

Labortory, Wastewater Treatment Inkjet Printing, Liquid Dispensing Medical Equipment, Industrial Equipment

Packing List

KLP180-E-DC24: 1 × pump. KLP180-E-DC12: 1 × pump. E-DC24--Power supply: 1 × pump; 1 × power supply. E-DC12--Power supply: 1 × pump; 1 × power supply. ​

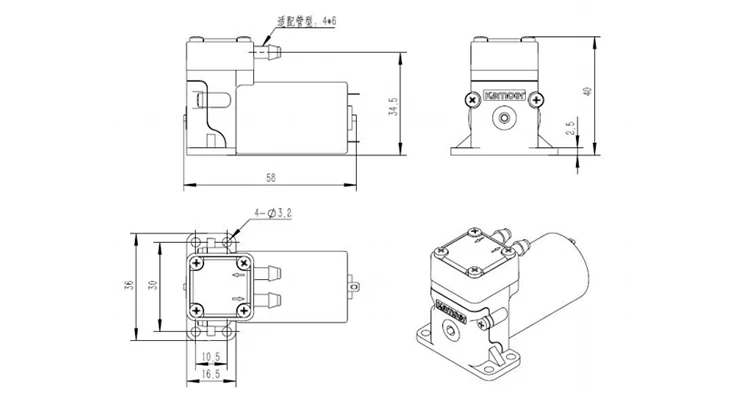

KLP180 Structure Description

1. Screw(metal) , 2. Upper cover(Powder metallurgy),3. Gasket(EPDM/PTFE) 4. Upper valve plate(PPS),5. Valve(EPDM/V),6. Lower valve plate(PPS) 7. Diaphragm(EPDM/V),8. Pump body(PA6) ,9. End cover screw(metal) ​10. Oil bearing(Copper matrix)11. Back cover(PA6) ,12. Eccentric wheel(aluminum) 13. Bearing positioning ring(NSK/NMB) 14. Pump body screw(metal) 15. Motor(Ferrite)

Brushless motor wire sequence description:

1. Red wire positive; black wire negative; white wire speed control wire; yellow feedback wire; positive and negative pole reverse connection protection function. 2. Two speed regulation modes: PWM and 0-5V. Speed adjustment range: 1500-4200rpm. PWM frequency 10KHZ-30KHZ, volt value: 5V. 3. Yellow line speed feedback, connect oscilloscope probe or host computer. 1 pulse/revolution 4. The global uniform speed, the red wire and white wire are connected to the positive pole of the power supply, and the black wire is connected to the negative pole.

KLP180 Mini Diaphragm Pump 180ml/min

As low as $27.00
In stock
SKU
KLP180
