KCP-C peristaltic pump 2.6-65ml/min

  • Overview
  • Technical specifications
  • Purchases

Product Details

Pretty Ultra-silent Maintenance free Adjustable Zero-pollution Max mtbe ​

Basic Parameters

Voltage: 24V DC motor Flow Rate: 2.6~65ml/min Tube Material: Silicon tube; Pharmed®BPT tube Pump Head: Engineering Plastics Pulse: 3 rollers; low pulse Working Environment: Temperature: 0~40℃ Relative Humidity: <80℃ Noise: ≤40dB Weight: 270g(without power); 330g(with power) Size: Length: 100mm width: 49mm; Height: 68mm

Multiple Applications

# Printing: transferring printing ink # Transportation: pumping the oil and other liquid # Aquarium: drawing water from tank, calcium response reaction # Scientific facility: laboratory experiment # Animal disease experiment: blood transfer

Flow Rate & Tube Description


Code

Tube Size

Flow Rate

S02

0.6×3.0(Silicone tube)

2.6~4 ml/min

S04

1.0×3.3(Silicone tube)

4~14 ml/min

S06

2.0×4.0(Silicone tube)

11~34 ml/min

S08

2.5×4.5(Silicone tube)

17~50 ml/min

S10

3.0×5.0(Silicone tube)

19~65 ml/min

B06

2.0×4.0(BPT)

9.3~32 ml/min

B08

2.5×4.5(BPT)

14.6~41.5 ml/min


Tube

Materials

Features

Tube

Life

Size

S

Silicone

Competitive price;  Resistant to weak acid and base;  The softest of tube types;

Most commonly used in water pump

≥200H

175mm

(49.5mm exposed)

B

PharMed

BPT

Non-cytotoxic and non-hemolytic effect;   Highly resistant to ozone and UV rays;

Extreme resistant to the acid and base and heat, anti-aging, antioxidant, long service time

Temperature range from -51℃-132℃

≥1000H

135mm

(29.5mm exposed)



Tube Joint

Connector

Straight

L type

Y type

T type

Cross type

ID of tube

1/16
(1.5mm)

32050004
A0

32050027
A1

32050006
A2

/

32050039
A4

0.6≤φ ≤1.6

3/32
(2.3mm)

32050038
B0

32050028
B1

32050029
B2

32050053
B3

/

1.6≤φ ≤2.4

1/8
(3mm)

25010021
C0

32050037
C1

32050015
C2

32050020
C3

32050019
C4

2.4≤φ ≤3.2

Adapter Details


Power Adapter

24V

Chinese Standard

24V

American Standard

24V

European Standard

24V

British Standard

24V

Australian Standard

Model

32040002

10080033

10080021

10080038

10080039

Power Cable

Number L: BB040022

Packing List

​1 × KCP-C pump; 1 × Adapter(US/UK/EU/AU Plug)

More Details

▲ Smarter and Smaller

▲ Zero-pollution and low pulse

▲ ​Rate button-adjustable flow rate(2.6-65ml/min)

▲ Maintenance free

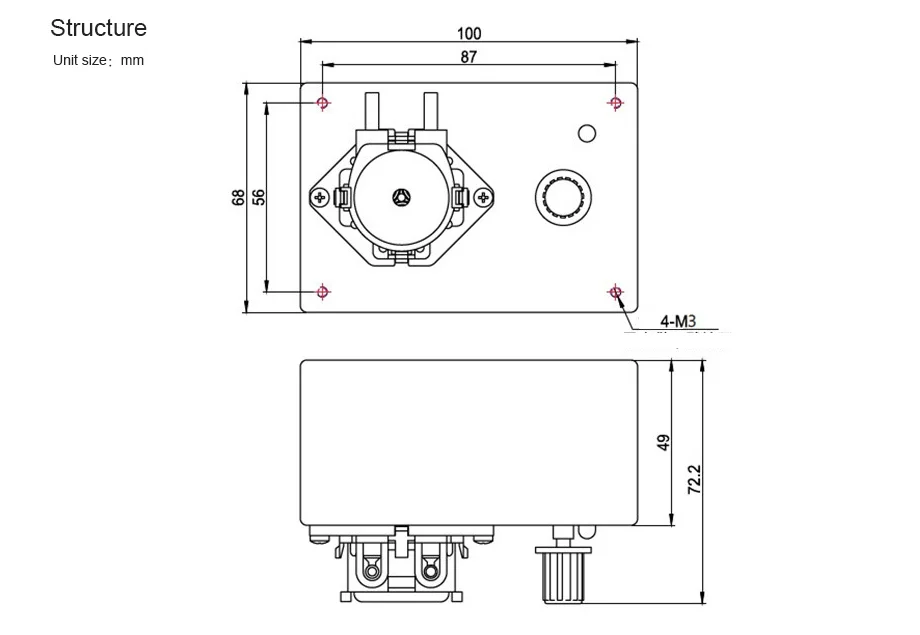

Dimensions

KCP-C peristaltic pump 2.6-65ml/min

As low as $39.00
In stock
SKU
KCP-C
