Liquid Damper for Eliminate Pipeline Pulsation Working on Peristaltic Pump and Diaphragm Pump
- Overview
- Technical specifications
- Purchases

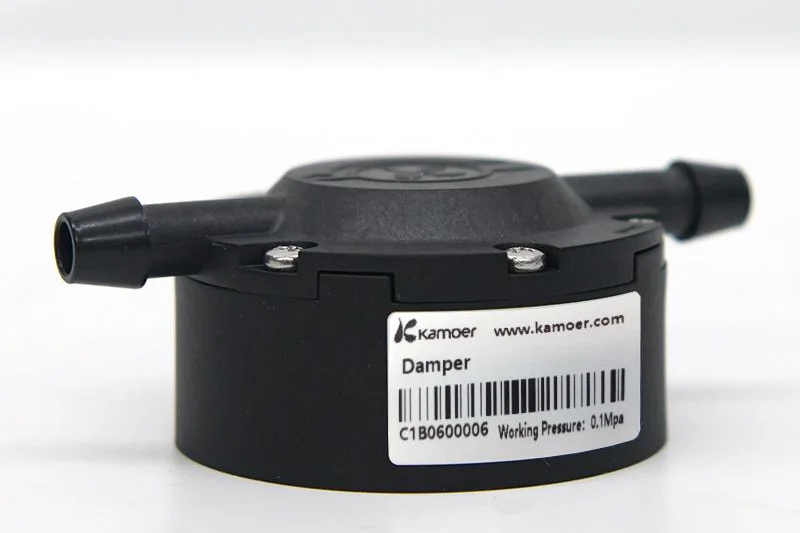

Liquid Damper for Eliminate Pipeline Pulsation on Peristaltic Pump or Diaphragm Pump

★ Pulsation elimination
★ Maintenance-free
★ Long life
Functions Description
01. Reduce the damage to the system by removing water hammer.
02. Reduce the peak value of flow rate fluctuations.
03. Protect pipelines, elbows and joints from the impact of pressure fluctuations.
04. Create a good working environment for metering pumps and improve pump performance.
05. It can be used in conjunction with a back pressure valve to make the pressure fluctuation of the pipeline close to zero.
06. Reduce the energy consumption of the system.
Basic Parameters
Diaphragm material: EPDM
Cover material: PPS
Pressure: Max Less than 0.3 Mpa
Lifetime: 1 year
Weight: 0.04KG
Working temperature: 0℃~60℃
Humidity: Less than 80%
Protection level: IP55
Fluid Medium Description
★ water, alcohol, weak acid, weak base, weak oxidant, general refrigerant and detergent, etc.
!!! Warning ⭕
The following media are not recommended: fatty and aromatic solvents (such as gasoline, benzene, etc.) and mineral oil.
Various Applications
▲ Peristaltic pump-KHM

▲ Diaphragm pump

▲ Scope of application: the following table serves as a reference for selection
Model |
Flow loss |
Power loss |
ReducePulseEffect |
KLLP1500 |
<5% |
<1% |
Excellent |
JET500 |
<8.5% |
<1% |
Excellent |
KLP02 |
<9% |
<1% |
Excellent |
KLP01 |
<5% |
<1% |
Better |
KHL |
<1% |
<1% |
Excellent |
KKDD |
<1% |
<1% |
Excellent |
EPST |
<1% |
<1% |
Excellent |
KK15 |
<1% |
<1% |
Excellent |
KK25 |
<1% |
<1% |
Excellent |

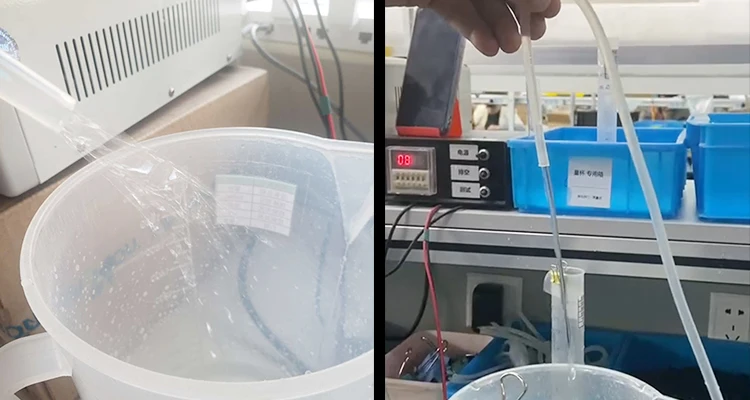

Comparison
Left---Before using the Damper: Splashing
Right---After using the Damper: Smoothly
▲ Reduce pulse, excellent effects

Installation Method

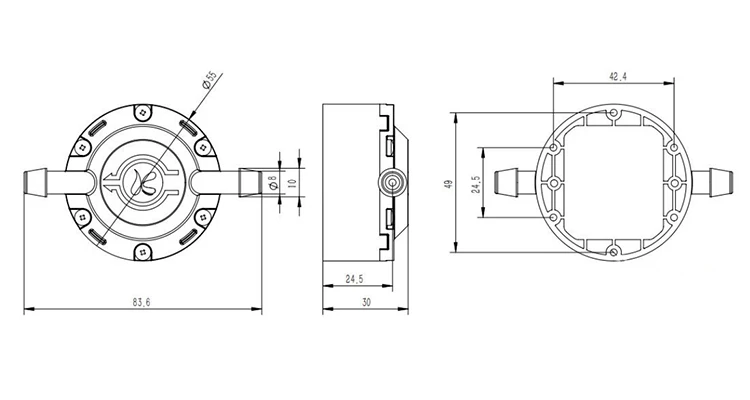

Size Drawing
